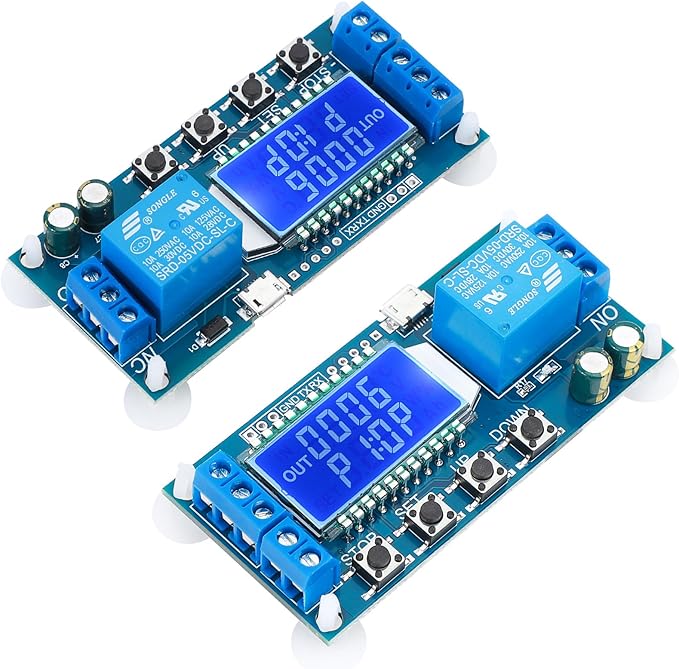

DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port

DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port

$27.99
Skip to product information
DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
  • DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port
DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port

DROK Timer Relay 2pcs, DC 6V-30V LCD Display Time Delay Relay Cycle Timer 0.01s-9999mins with Input 5V Micro USB Port

$27.99

About This

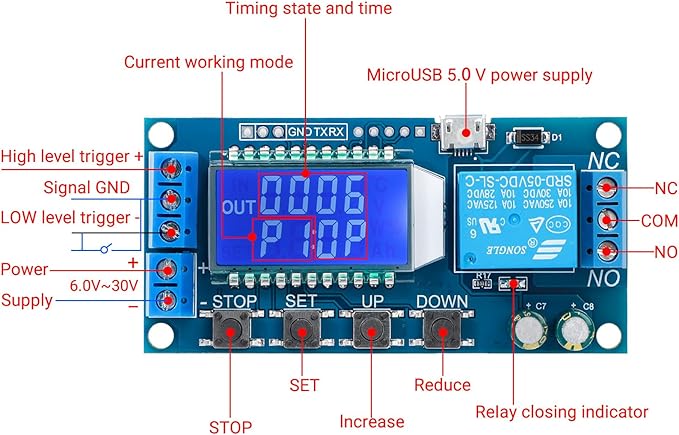

  • DROK timer relay operating voltage range is DC 6-30V, support micro USB 5.0 V power supply; support high level trigger 3.0v-34v and low level trigger 0v-0.2v; timing range is 0.01s~9999mins, can be continuously adjustable.
  • LCD Display: the time delay relay module is designed with LCD display, can clearly and directly show the current mode and parameters.

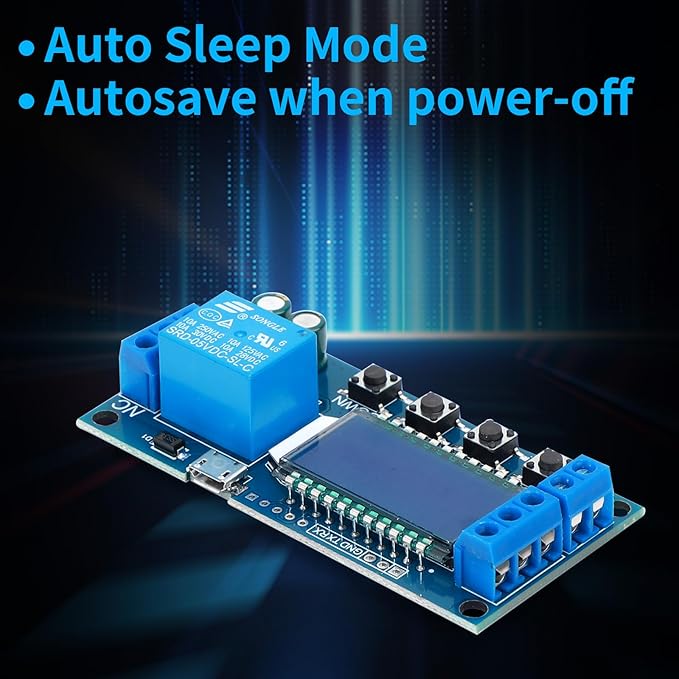

  • Sleep Mode: without any operation within 5 minutes, the LCD backlight of the relay board will close automatically. Any button can wake up.
  • Independent Parameters: OP/CL/LOP parameters can be modified and saved, and they are individual.
  • Auto Save: All setting parameters are automatically saved by power-fail.

Overview

  • Connector Type : Usb
  • Current Rating : 5 Amps
  • Brand : DROK
  • Operation Mode : Automatic
  • Contact Current Rating : 5 Amps
