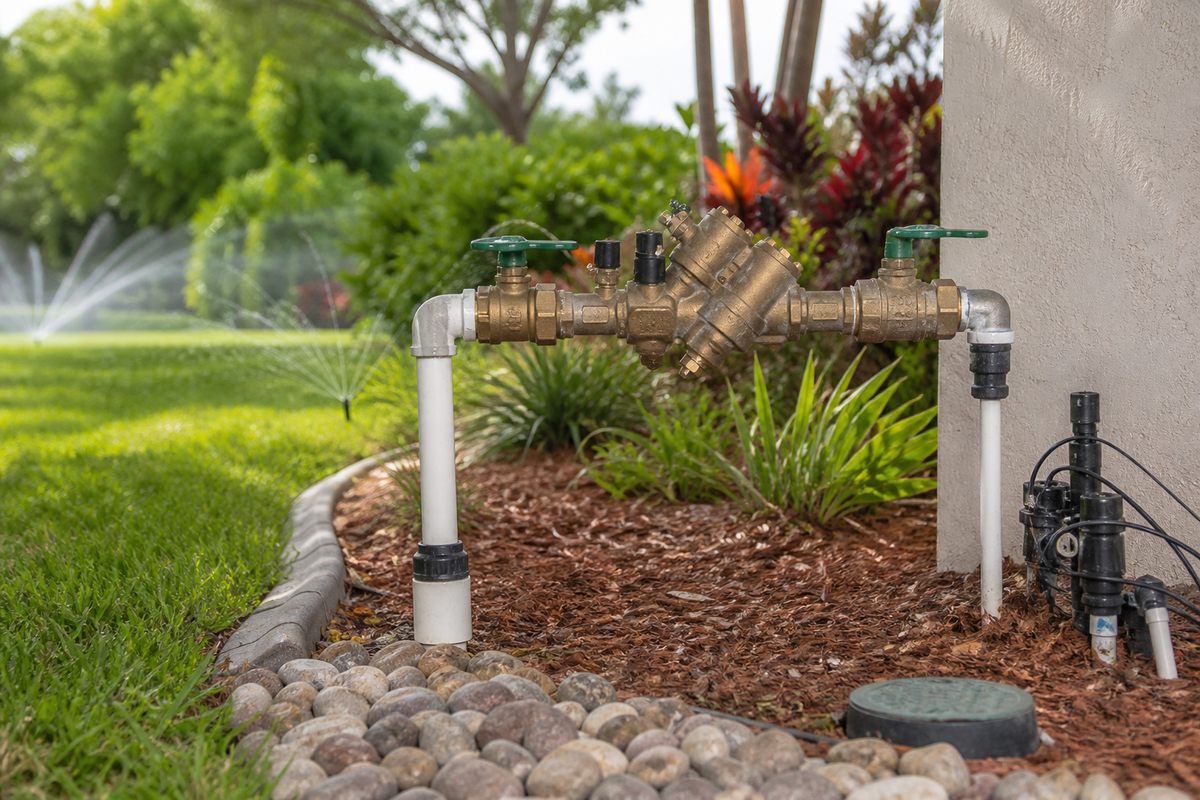

A valve inspection can reveal an unexpected problem: a sprinkler zone is shut off, yet water remains in an exposed section of pipe, or the backflow assembly is damp and difficult to operate. These signs do not identify the cause by themselves, but they are a reason to pause before opening valves, changing fittings, or restarting the irrigation system.
Backflow prevention starts with understanding how water could move in the wrong direction, then matching the irrigation layout and site conditions to an approved protection method. This guide walks through the process from a small residential setup to a larger system, including device selection, installation details, testing, and future expansion.
- Map the water source, irrigation zones, elevation changes, and possible contamination points.
- Check local plumbing or water-utility requirements before selecting a device.
- Choose a backflow preventer based on the system’s hazard level and operating conditions.
- Install the assembly where it can be drained, inspected, repaired, and tested.
- Confirm whether testing must be performed by a qualified or certified tester.
- Record the installation details and include the device in seasonal maintenance.
Begin with a Site Observation, Not a Fitting
A small irrigation system may appear simple: one water connection, a few valves, and several sprinkler zones. The backflow decision still depends on what the irrigation water can contact and how the system is arranged.
Walk the full path from the point where potable water enters the irrigation piping to the farthest emitter or sprinkler. Look for fertilizer injectors, chemical applications, hose connections, ponds, tanks, open reservoirs, below-grade piping, and equipment that could create pressure in the opposite direction. An elevation change also deserves attention because water can drain or siphon through piping when valves close or supply pressure changes.
The goal is not to assume that every installation has the same risk. A basic sprinkler layout supplied directly from a household line may require a different protection method from an irrigation system connected to a chemical injection unit or an open water source. The correct device may also be controlled by local plumbing rules, utility policies, or the authority having jurisdiction.
For a small setup, make a simple site sketch before buying parts. Mark the water meter or supply connection, shutoff valve, backflow assembly location, irrigation control valves, low points, high points, and any connection that introduces another substance or water source. Note whether the assembly will be outdoors and exposed to freezing temperatures.
This quick map helps prevent a common mistake: choosing a device from pipe size alone. Pipe size matters for fitting the assembly into the system, but it does not determine the required level of backflow protection by itself.
Match the Protection Principle to the Irrigation Hazard
The useful principle is simple: select protection according to the most serious backflow condition the system could create, not according to the easiest device to install.
Backflow can occur through backpressure, when downstream pressure becomes greater than the supply pressure, or backsiphonage, when a drop in supply pressure draws water backward. Some devices address one condition more directly than others, while certain assemblies are intended for higher levels of protection and require specific installation conditions.
Common device categories include atmospheric vacuum breakers, pressure vacuum breakers, double-check assemblies, and reduced-pressure principle assemblies. Their use is not interchangeable in every location. They differ in how they respond to pressure changes, whether they can remain under continuous pressure, where they may be installed, and how they must be tested or serviced.
Consider a basic example. A residential sprinkler system with no chemical injection may have a relatively straightforward hazard profile, but the local authority may still specify a particular vacuum breaker or another approved assembly. A system that adds fertilizer through an injector introduces a different concern because substances can be drawn or pushed into the potable supply if conditions allow. That change may require a different protection strategy.
Apply the principle by answering four questions before selecting the valve or assembly:
- What is the water source, and is it potable?
- Can the irrigation water contact chemicals, fertilizer, animal waste, stagnant water, or another contaminating material?
- Could downstream pressure exceed supply pressure?
- What does the local water provider or plumbing authority require for this connection?
Use manufacturer installation instructions and local requirements together. A device that is suitable in one jurisdiction or system design may not meet the requirements of another.
Does Every Irrigation System Need the Same Backflow Preventer?
No. The required assembly depends on the hazard, hydraulic conditions, system design, and applicable local rules.
A small lawn irrigation system may use a different device from a commercial landscape system, greenhouse, sports field, or system with chemical injection. Some installations may also need protection at more than one point if separate water sources or special equipment are involved.
Device names alone are not enough for selection. Confirm the allowed orientation, pressure conditions, drainage needs, service clearances, and test requirements before installation. If the water utility requires a specific assembly or annual documentation, that requirement controls the project.
A Common Installation Mistake Is Hiding the Assembly
Backflow preventers are sometimes placed in cramped valve boxes, buried without adequate drainage, installed behind landscaping, or positioned where a technician cannot attach test equipment. The mistake usually happens because the installer is trying to preserve appearance or save space after the pipe route has already been planned.
A better approach is to reserve the service location before laying out the rest of the irrigation system. The assembly should be accessible for visual inspection, shutoff operation, testing, and replacement. Follow the device instructions for orientation, clearances, elevation, and drainage. Do not assume that an underground box is acceptable simply because the piping can physically fit inside it.
Protect the assembly from likely damage while keeping it visible and serviceable. Outdoor installations may need protection from vehicles, lawn equipment, freezing conditions, or accidental impact. Freeze protection is especially important where water can remain trapped inside the body or attached piping; seasonal shutdown procedures should follow the device and system requirements rather than relying on a quick valve closure.
Set Installation Priorities Before Making the Final Connection
Three priorities usually compete for attention: compliance, serviceability, and appearance. Compliance comes first because an attractive installation that does not meet the applicable requirement may need to be rebuilt. Serviceability comes next because testing and repairs are part of owning a backflow assembly, not optional extras. Appearance can then guide the enclosure, pipe routing, and landscape treatment.
There are trade-offs. A more accessible location may be more visible. A compact route may save pipe but leave insufficient room for test equipment. An underground installation may look cleaner but can complicate drainage, inspection, and freeze protection.
For most projects, the practical recommendation is to locate the assembly near the point of connection, where it is protected from damage and easy to reach without dismantling unrelated irrigation components. Verify the arrangement with the local authority and installer instructions before the pipe is permanently joined.
When the Irrigation System Expands, Recheck the Original Protection
Imagine a small sprinkler system that later gains more zones, a drip area, a fertilizer injector, or a connection to a second water source. The original backflow preventer may still be physically connected, but the system’s hazard profile and hydraulic behavior have changed.
The likely outcome is not automatically failure, but the original design can no longer be assumed to cover the expanded arrangement. Added equipment may introduce new contamination risks, pressure changes, or installation conditions that affect the required assembly. The increased flow demand may also expose undersized piping or make testing and shutoff access more difficult.
Before adding branches, review the complete layout again. Identify every new connection and determine whether it changes the type of protection required. Confirm that the existing device is permitted for the revised use and that the new piping does not bypass it. A branch connected upstream of the assembly, for example, may not receive the intended protection.
Large systems benefit from dividing the design into documented sections. Record the main supply, isolation valves, backflow assemblies, zone manifolds, pressure-regulating equipment, injection points, and alternate water sources. Labeling these components reduces confusion during repairs and helps a tester understand the system before taking measurements.
Build a Testing and Maintenance Routine That Matches the Installation
Installation is only the first checkpoint. Backflow assemblies contain moving or sealing components that can be affected by debris, mineral deposits, freezing, pressure changes, or infrequent operation. A maintenance plan should make it possible to notice a problem before it becomes a supply or irrigation issue.
What to inspect between formal tests
At the start of the irrigation season, inspect the assembly and surrounding pipework for visible leaks, impact damage, corrosion, frost damage, blocked drains, and signs that the device has been altered. Operate nearby shutoff valves carefully if they have been inactive for a long period, watching for leakage around stems, unions, or threaded connections.
Do not remove test ports, springs, covers, or internal parts merely to investigate a minor symptom unless the device instructions and local requirements allow that work. Internal components are part of a tested assembly, and improvised repairs can affect its operation or approval status.
Formal testing is a separate task
A visual inspection cannot confirm that a backflow preventer performs within the limits required for its design. Formal testing uses the procedures and equipment specified for the assembly. Many jurisdictions require testing by a qualified or certified tester, with results submitted to the water provider or another authority on a defined schedule. The exact interval and documentation process vary, so check local rules rather than assuming a universal schedule.
Testing should be arranged after installation, following repairs, and whenever local requirements call for it. Keep a record of the assembly location, device identification, installation date, test results, repairs, and any seasonal shutdown or startup work. This record becomes particularly useful on commercial properties with multiple assemblies.
Use test results to guide the repair decision
A failed test does not identify one universal repair. The response may involve cleaning, replacing a worn component, correcting installation conditions, addressing debris, or replacing the assembly if it cannot be restored according to the manufacturer’s instructions. The tester should explain the failed condition and whether the irrigation system needs to remain isolated until the issue is corrected.
If water discharges from a relief area, the assembly leaks continuously, or the irrigation system behaves unexpectedly after startup, close the appropriate isolation valve if it can be done safely and arrange an inspection. Do not bypass the backflow preventer to keep watering while the cause remains unknown. A temporary workaround can leave an unprotected connection in service.
Plan for seasonal operation
Cold-weather regions need a defined shutdown process that accounts for the backflow assembly, adjacent piping, valves, and low points. The correct sequence depends on the device and installation. In warmer climates, inspect for sun exposure, landscape damage, sediment, and unauthorized adjustments at the beginning of the watering season.
Large commercial or institutional systems may need a written maintenance schedule with assigned responsibilities. Include inspection dates, testing deadlines, valve labels, access requirements, and a process for documenting modifications. Scaling the recordkeeping along with the pipe network helps prevent an added zone or device from disappearing into an undocumented system.
For readers managing more complex installations, the next useful step is to treat backflow prevention as part of the water-system design rather than as a final fitting. Review hydraulic conditions, hazard changes, device access, testing logistics, and future branches before construction begins. That approach leaves room for qualified testing and maintenance without forcing later modifications into a crowded irrigation layout.
