What size irrigation filter does a drip system need, and how often should it be cleaned? The answer depends on the water source, debris type, system flow, and filter micron rating—not just the pipe connection.
This guide explains how to diagnose clogging, choose a filter, size it to actual water demand, and create a practical cleaning routine.
Start With the Symptoms Your Drip System Is Showing
A filter problem often appears downstream. Some emitters may deliver less water, end-of-line plants may look drier, or the system may take longer to reach normal operating pressure. A filter filling with debris can restrict flow even when the tubing is installed correctly.
Before replacing parts, rule out other causes such as a closed valve, kinked supply line, clogged emitter, leaking fitting, or inadequate water supply. Check the system from the water source toward the plants:
- Confirm the valve is fully open and the supply line is not pinched.
- Inspect the filter housing for sediment or an obstructed screen or disc element.
- Compare flow or pressure before and after the filter if suitable gauges or measurement points are available.
- Flush the mainline and laterals before checking individual emitters.
- Look for a pattern: system-wide restriction usually points upstream, while one weak emitter may need local cleaning or replacement.
If the whole zone weakens at once, investigate shared components first. If only one branch is affected, the filter may not be the primary cause. A finer filter will not correct a valve, pipe, or emitter problem.
Match the Micron Rating to the Debris in Your Water
A micron rating describes the approximate size of particles a filter element is designed to retain. A lower number represents finer filtration. Fine filtration can help with small suspended particles, but it also has less open space for debris and may require more frequent cleaning.
The goal is not to select the smallest available rating. Choose a filter that protects the emitters while maintaining the required flow. Follow the manufacturer’s filtration guidance when available; otherwise, consider the water source and the debris you can observe.
Well water may carry sand or mineral sediment. Open tanks, ponds, and canals can introduce organic matter, algae, or fine suspended material. Rainwater storage may contain roof debris and settled particles. These sources can require different filtration approaches.
Also distinguish between filter rating and filter area. Two filters may use similar media but have different surface areas. The larger element may hold more debris before flow is restricted, but it must still meet the system’s flow and connection requirements.
A practical selection process is:
- Identify the water source and visible debris.
- Check the drip system documentation for a recommended filtration level.
- Choose a rating that protects the emitters without being unnecessarily fine.
- Allow for the maintenance demands of the water source.
If the element clogs quickly, do not assume the rating must be finer. The source may need a pre-screen, settling step, or more frequent flushing. Filtration works best as part of a sequence rather than as the only defense against heavy debris.
Size the Filter for Actual Flow, Not Just Pipe Diameter
The connection size helps the filter fit the plumbing, but it does not prove that the filter can handle the zone. Add the flow requirements of emitters, sprayers, or other outlets operating at the same time, then compare that demand with the filter’s stated flow range and pressure-loss information.
A small garden zone with a few low-flow emitters may need less filter capacity than a longer zone operating many outlets. Systems with the same tubing diameter can still require different filter capacities because their active outlet counts differ.
A flow measurement can help when installation details are uncertain. An inline digital flow meter may provide a way to observe water movement in a compatible irrigation layout, but confirm its connection, liquid, and operating specifications before installation.
Use the measurement as a planning tool, not a replacement for the manufacturer’s data. Also check:
- Expected operating flow for the zone
- Filter connection and plumbing arrangement
- Allowable pressure loss
- Space needed to remove and clean the element
- Room for a flush valve or drain, if needed
Place the filter where it can be reached without dismantling other fittings. A technically suitable filter that is difficult to open may not receive the maintenance the system requires.
Use This Maintenance Checklist Before Problems Spread
A short, repeatable inspection is better than cleaning only after plants show stress. The interval should reflect how quickly the element collects debris, so dirty water sources may require more frequent checks.
- Shut off the water: Relieve pressure before opening the housing.
- Inspect the element: Look for sand, organic matter, scale, or damage.
- Clean correctly: Rinse or brush only as the filter instructions allow.
- Check the seal: Inspect the O-ring and housing surfaces for dirt, twisting, or damage.
- Reassemble carefully: Seat the element and tighten the housing as directed.
- Flush the system: Open line ends or flush points to move loosened debris away from emitters.
- Observe operation: Check for leaks and compare flow with the previous cycle.
Record cleaning dates and what you find. Repeated heavy loading suggests the system needs a different schedule or additional source-side control.
Compare Filter Types Before You Commit
Screen and disc filters are common choices for drip irrigation, but neither is right for every source. Consider debris type, cleaning effort, available space, and how the filter behaves as it loads.
| Filter type | Often suits | Trade-off to consider |
|---|---|---|
| Screen | Water with relatively straightforward, larger suspended particles | May require frequent rinsing when debris loads quickly |
| Disc | Water containing mixed or irregular suspended debris | Requires removing and separating the disc element as directed |
| Pre-screen plus primary filter | Sources carrying heavier or larger debris loads | Adds components, space requirements, and maintenance |
A screen can be convenient when debris rinses away easily. A disc element may suit varied particles that lodge across the filtering surface. A pre-screen can reduce the load reaching the primary filter, but it adds installation complexity. Select based on the water source, not the filter name alone.
Do This During Installation—and Avoid These Shortcuts

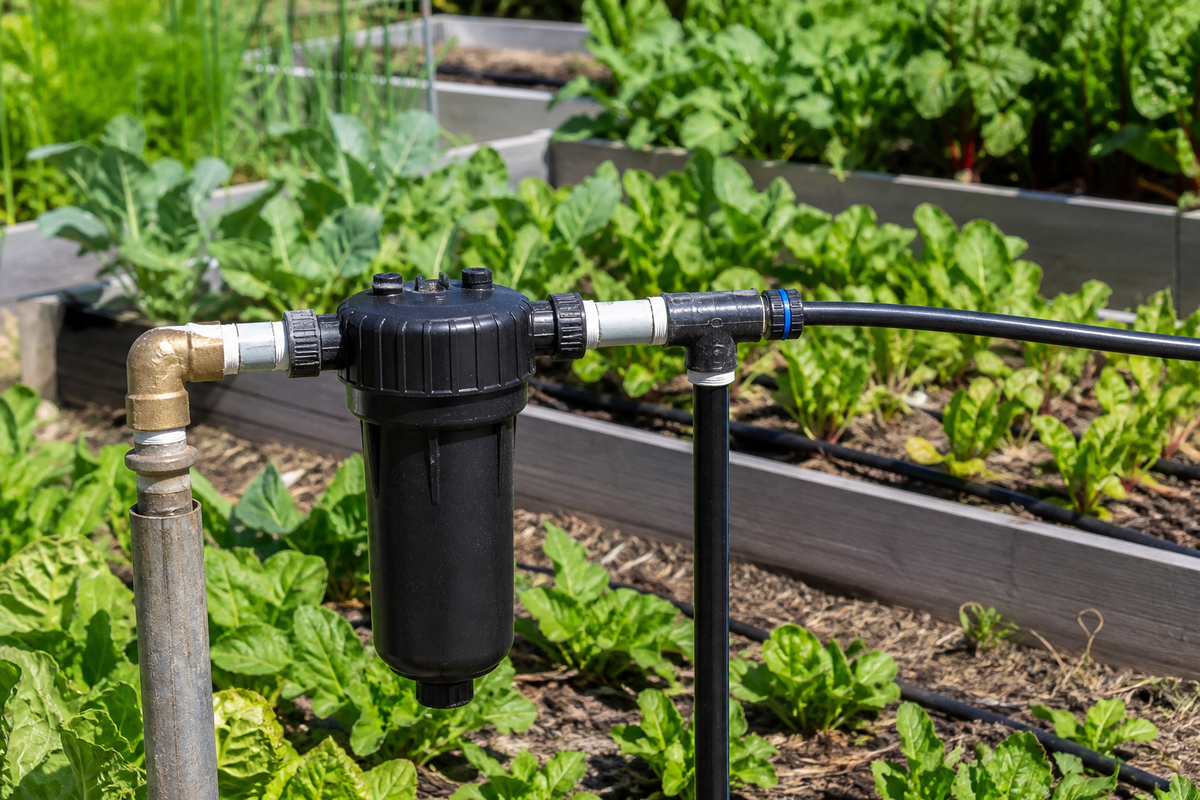

Do: install the filter before the drip distribution begins, provide access for cleaning, follow flow-direction markings, and leave enough room to remove the housing.
Don’t: bury the filter where it cannot be inspected, choose a finer rating simply to compensate for dirty source water, or restart the system without flushing loosened debris from the lines.
A dependable setup makes maintenance straightforward. Keep the filter visible and accessible, match it to the zone’s measured needs, and use the cleaning record to guide future adjustments.
